Horský elektrobicykel Scott Patron St eRide 900 Tuned

Popis

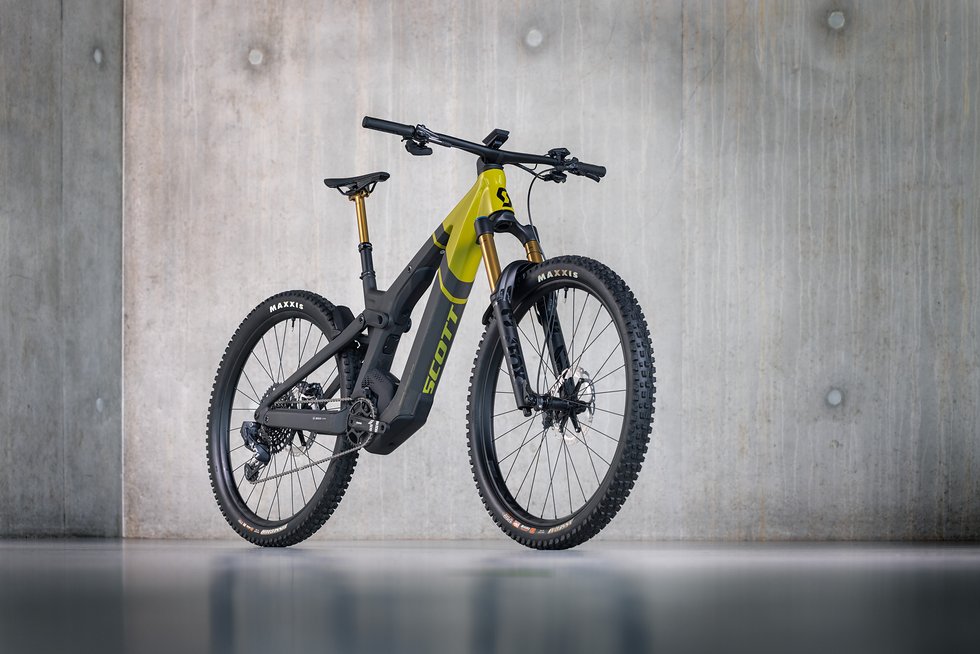

Horský elektrobicykel Scott Patron St eRide 900

Scott Patron ST eRIDE 900 Tuned je vrcholový horský elektrobicykel, ktorý ponúka špičkový výkon a technológiu. Je vybavený motorom Bosch Performance Line CX s krútiacim momentom 85Nm a batériou s kapacitou 750Wh, čo zaručuje dlhý dojazd a vysoký výkon. Bicykel má karbonový rám, vidlicu FOX 38 Factory so zdvihom 160 mm a tlmič FOX Float X Nude. S 12-rýchlostným radením a kotúčovými brzdami Shimano XT poskytuje presné a spoľahlivé ovládanie v náročnom teréne.

Frame

Carbon Main Frame & SST / Alloy CST-Link

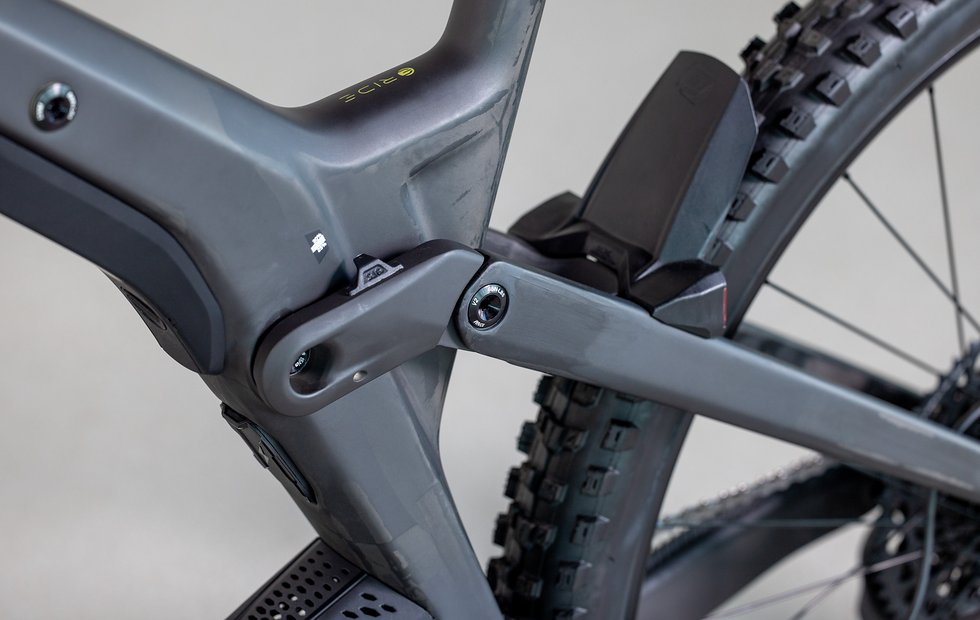

Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch Gen4 / Integr. removable Battery
1.8″ Headtube, Central Kickstand Mount
Integr. Cable
Travel

Front: 170mm / Rear: 160mm
Fork

FOX 38 FIT Factory Grip 2 Air / Kashima
HSC – LSC – HSR- LSR adjustable / QR Axle 15x110mm
44mm offset / tapered steerer
170mm travel
Rear Shock

FOX NUDE T eRIDE EVOL Kashima / Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
custom large air volume / DPS / Reb. Adj.
Travel 160-115-Lockout / 205X60mm

Drive Unit

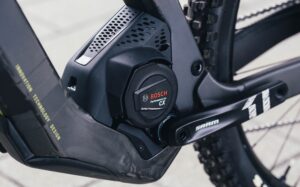

Bosch Performance CX-R
EU: 25kmh / INT: 20mph

Battery

PowerTube 750Wh
Display

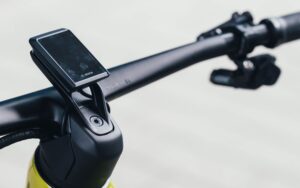

Bosch LED Remote & Kiox 300
Charger

4A Charger
Rear Derailleur

SRAM X01 Eagle AXS / 12 Speed
Wireless Electronic Shift System
Shifters

SRAM GX Eagle AXS Rocker Controller
Crankset

SRAM X1 1000 / 165mm
Chainguide

e*thirteen / e*spec Slider
Chainring

SRAM Eagle 34T DM / Steel
Chain

SRAM CN NX Eagle
Cassette

SRAM XG1275 / 10-52 T
Brakes

Shimano XT / BR-M8120 4 Piston
Rotor

Front: RT-MT800 CL 203mm / Rear: RT-EM800 CL 203mm
Handlebar

Syncros Hixon iC SL / 15mm Rise / integrated cockpit
S&M: 5° 50mm / L&XL: 4° 60mm virtual stem angle & extension
7° backsweep / 6° upsweep / Syncros Endurance lock-on grips
Seatpost

FOX Transfer Factory Dropper Post Kashima
31.6mm / S size 125mm / M size 150mm / L size 175mm / XL size 200mm
Seat

Syncros Tofino 1.5 Regular
Titanium rails
Headset

Acros / 1.8″
ZS66 OD74 / integr. Cable
Wheelset

Syncros Revelstoke-E 1.5 CL
F: 15x110mm, R: 12x148mm Boost
30mm Tubeless ready rim 28H
Syncros Axle w/Removable Lever with Tool
Front Tire

Maxxis Assegai 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra

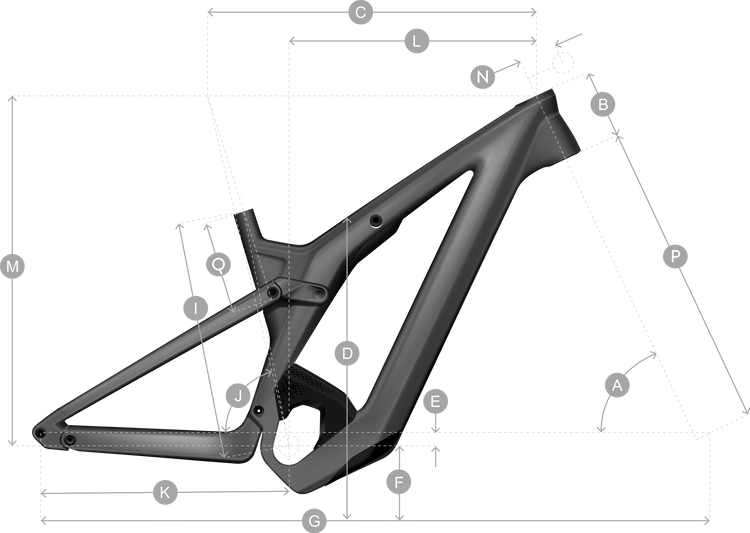

		S	M	L	XL
A	head tube angle	63.8 °	64.4 °	64.4 °	64.4 °
B	head tube length	120.0 mm	125.0 mm	135.0 mm	145.0 mm
C	top tube horizontal	579.4 mm	595.0 mm	625.6 mm	656.4 mm
D	standover height	772.3 mm	772.3 mm	772.3 mm	772.3 mm
E	BB offset	-25.0 mm	-25.0 mm	-25.0 mm	-25.0 mm
F	BB height	352.0 mm	352.0 mm	352.0 mm	352.0 mm
G	wheel base	1,230.8 mm	1,240.6 mm	1,272.6 mm	1,304.4 mm
H	BB center to toptube center
I	BB center to top of seattube	410.0 mm	470.0 mm	470.0 mm	500.0 mm
J	seat angle	76.3 °	76.3 °	76.2 °	76.2 °
K	chainstay	454.0 mm	454.0 mm	454.0 mm	454.0 mm
L	reach	425.4 mm	438.4 mm	466.3 mm	493.9 mm
M	stack	639.7 mm	647.3 mm	656.5 mm	665.8 mm
N	stem length	50.0 mm	50.0 mm	60.0 mm	60.0 mm
0	trail	135.4 mm	131.6 mm	131.4 mm	131.3 mm
P	Fork length	583.7 mm	583.7 mm	583.7 mm	583.7 mm
Q	Maximum Seatpost Insertion	245.0 mm	265.0 mm	300.0 mm	320.0 mm
R	Crank Length	165.0 mm	165.0 mm	165.0 mm	165.0 mm
